MAGNUS CEDERLÖF

Climate Science

Correction of Uppsala long temperature series


2020-08-07


The temperature record from Uppsala in Sweden starts already in 1722. This is one of the world's longest temperature series available. A great job has been made to adjust and homogenize this data to be consistent over time, measurement locations and changed equipment. However, during the 20th and 21th century this temperature series has diverged substantially from surrounding rural stations. This is probably due to urbanisations effects from the growing city of Uppsala, which has more than doubled its inhabitants from the 1950th to now. The location of the measurements has also been moved, not further away from the city, but instead into the city. This gives the incorrect impression that the temperature lately has increased much more than it actually has.


There is however a well maintained reference measurement station, located some 5km north of the city center, at the Uppsala airport (N 59.895 E 17.594, 13 m above sea level). This is a former military airbase which has records of temperature 8 times per day from mid 1952 and every hour from 1962. The Uppsala Airport station was moved during 1995 from a place near the air traffic control tower to the beginning of the runway. But there is no apparent jump in the temperature records at that time when comparing with surrounding stations.


The long temperature series of Uppsala is maintained by Uppsala university and more information is available on their homepage here. The Uppsala series is described in an article:


Bergström, H and Moberg, A. (2002) Daily air temperature and pressure series for Uppsala (1722-1998). Climatic Change, 53, 213-25.


The homogenisation method is described in:


Moberg A, Bergström H. 1997: Homogenization of Swedish temperature data. Part III: The long temperature records from Stockholm and Uppsala. Int. J. Climatol. 17: 667-699


The Uppsala series can be downloaded from Swedish Meteorological and Hydrological Institute (SMHI) here.


To make the Uppsala series better reflect rural conditions, I have used the station at Uppsala airport to adjust the Uppsala series from 1953 and onwards. The adjusted data, methodology and validation is shown in the sections below. Hourly data from Uppsala airport has been downloaded from SMHIs site for open data.



The adjusted Uppsala series

The adjusted Uppsala series, which has been adjusted by use of the Uppsala airport data, can be downloaded in several formats:


- Daily data in the format "year month date temperature". One line per day (updated 2020-11-14):

uppsala_mcederlof_v1_0.txt

- Monthly and yearly data in csv format that can be opened with spreadsheet programs (with decimal comma or decimal dot) (updated 2020-11-14):

uppsala_mcederlof_monthly_yearly_v1_0_decimal_comma.csv

uppsala_mcederlof_monthly_yearly_v1_0_decimal_dot.csv


The yearly average of the adjusted Uppsala series is plotted below:


The difference between the original Uppsala series from Uppsala university and this adjusted series is plotted below per month (10 year moving average smoothing):



Adjustment methodology

The Uppsala series has been adjusted with a simple algorithm described below. It should be easy to reproduce this calculation for someone else.


1. Calculate daily means of Uppsala airport using 24 hours per day if available, otherwize 8 hours per day

2. Use monthly means for the years 1953 to 1955 to adjust (homogenize) the daily means from Uppsala airport so that these have the same monthly means as the Uppsala series for these years.

3. Replace the Uppsala daily means with the Uppsala airport adjusted daily means for the year 1953 and onwards.

4. For those days that miss values from Uppsala airport, use instead the Uppsala values but homogenized so that the monthly mean is the same as for Uppsala airport for this particular month.


Validation of the adjusted Uppsala series

For validation of the adjusted Uppsala series, I have used 7 different nearby rural stations except for Uppsala airport itself. The 7 stations has the following coordinates, altitude over sea level and distance to Uppsala ("A" means automatic station):

Film A: N 60.2358 E 17.9043, 33 m a.s.l, 53 km

Films kyrkby: N 60.2357 E 17.9072, 39 m a.s.l, 53 km

Kerstinbo A: N 60.2683 E 16.9738, 55 m a.s.l, 56 km

Risinge: N 60.1748 E 18.2240, 17 m a.s.l, 59 km

Sala: N 59.9045 E 16.6607, 58 m a.s.l, 44 km (moved 1990)

Sala A: N 59.9093 E 16.6843, 57 m a.s.l, 43 km

Svanberga: N 59.8317 E 18.6313, 15 m a.s.l, 67 km

All data is downloaded from SMHI's site for open data.

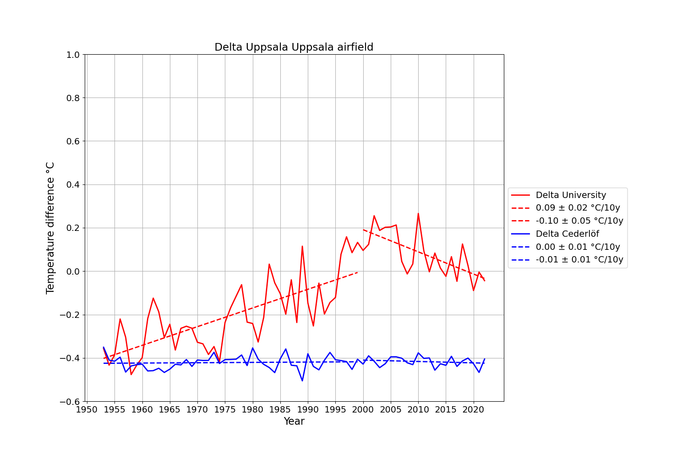

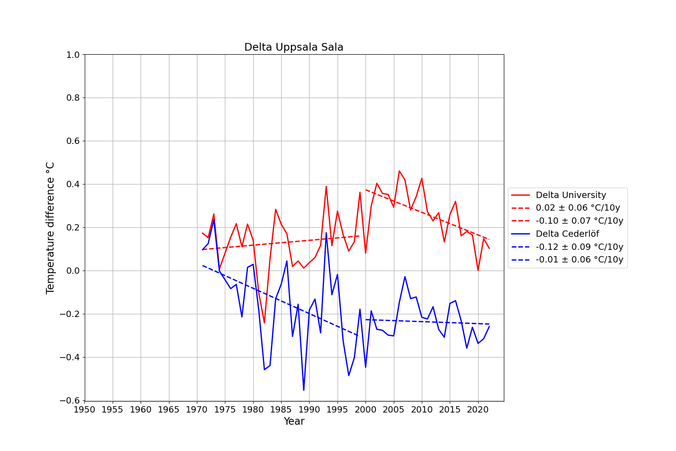

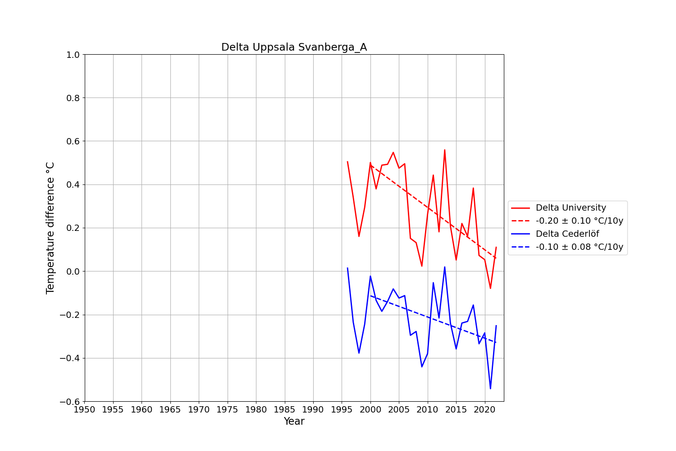

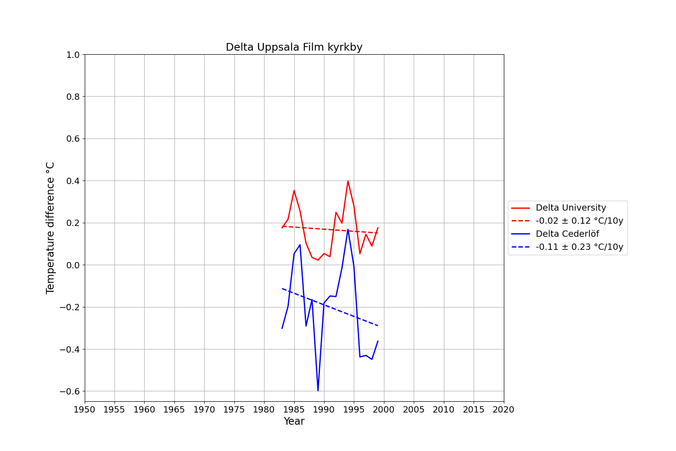

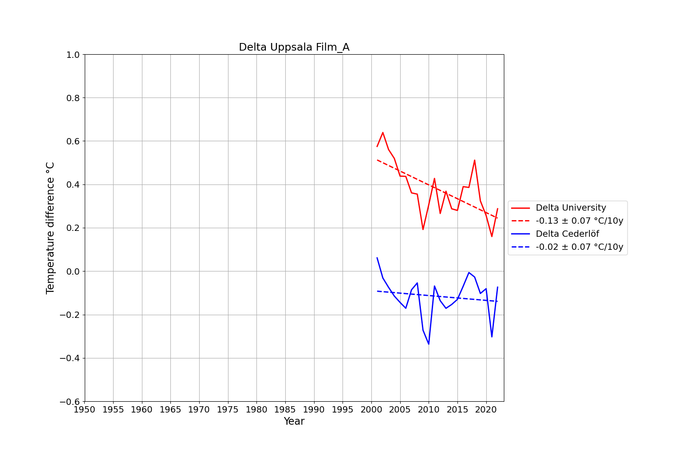

The plots below show the yearly difference between the Uppsala unadjusted/adjusted data and the reference rural station. Unadjusted in this respect means that it is unadjusted by me. The adjustments made by Uppsala university are still included.


A positive trend means that Uppsala has become warmer than the rural station. The yearly difference has been calculated as a mean of monthly difference for years with 11 or 12 months of data. The monthly difference has been calculated as a mean of daily difference for months with less than 15 missing days.



Please note that the stations above have a daily mean calculated using the Ekholm-Modén formula (based on daily max/min). That is the reason why the Uppsala airport doesn't have a straight line for the adjusted data.


The unadjusted Uppsala series (homogenized by Uppsala university) seems to have a much higher trend than most of the nearby rural stations. On the other hand, my adjusted Uppsala series seems to have a slightly lower trend (of about 0.05C/decade) compared to the nearby rural stations. The reason for this is not clear. One reason for this discrepancy could be newly built houses, roads or grown up vegetation around the rural stations. The history and placement of the Uppsala airport station is known, but that is not the case for the nearby rural stations. Therefore I have chosen to only rely on Uppsala airport for the adjustment. The correlation with the rural stations has improved significantly with the adjusted series, but the remaining discrepancy remains to be explained.
